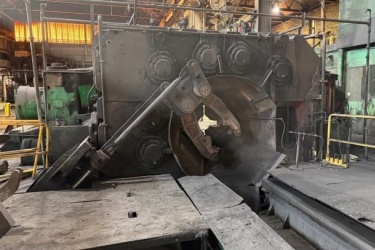

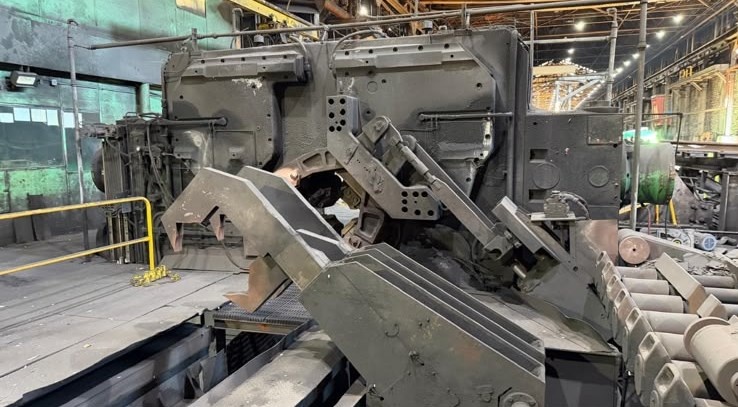

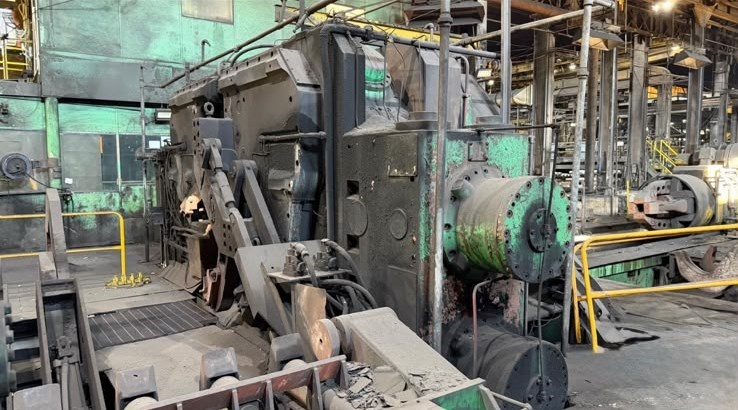

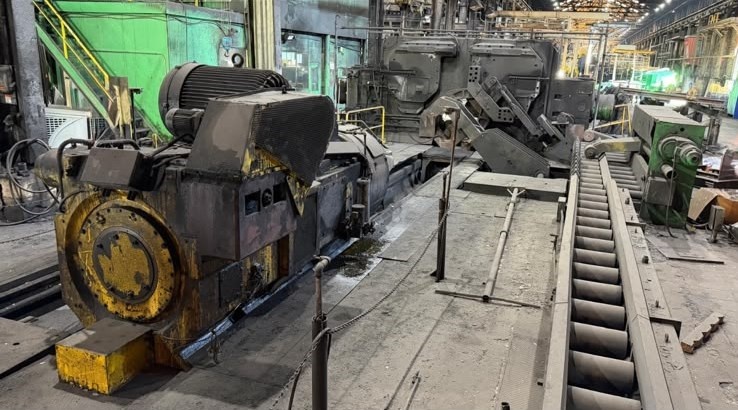

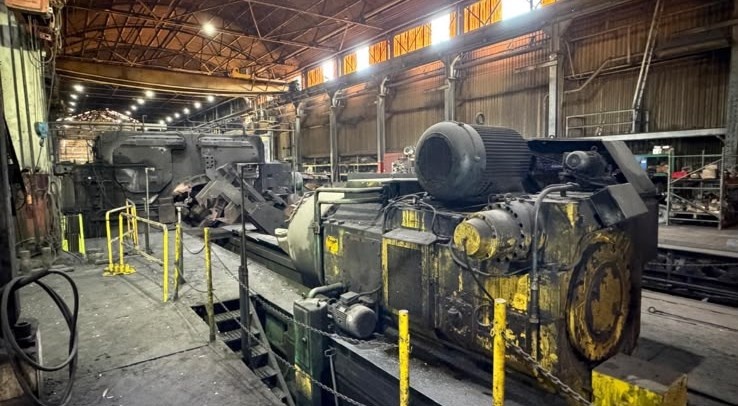

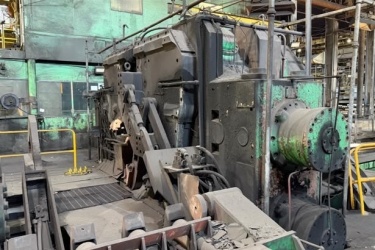

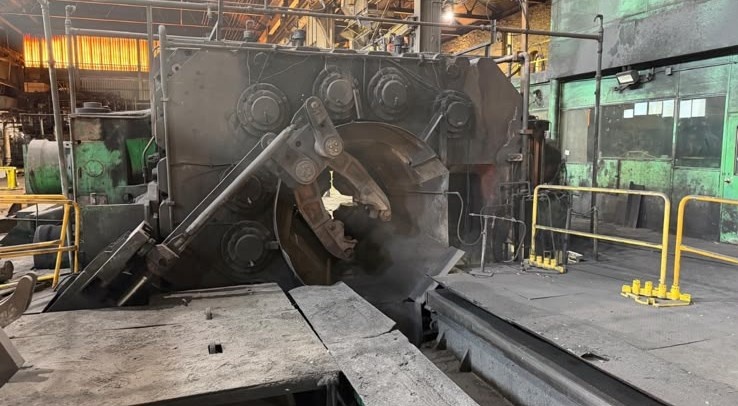

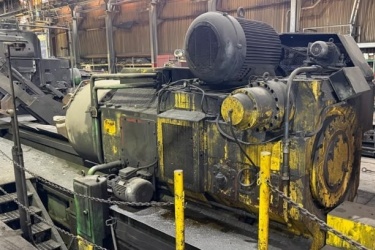

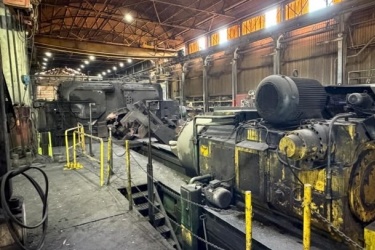

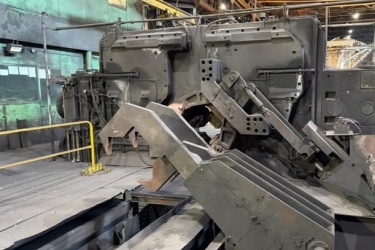

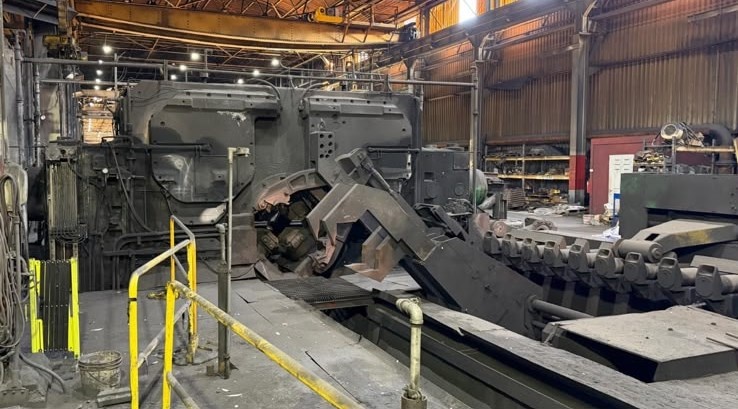

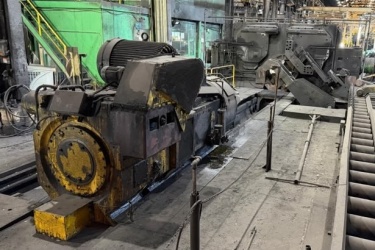

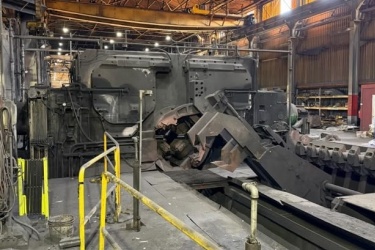

GFM Radial Forging Machine, in good used condition, full working order, still under power, POA
SX-45, force 8000 kN, 265 spm, max forging size round / square ø450 mm / 340×340 mm
Number of forging hammers 4
Forging force per ram 800 t
Number of forging strokes (per ram) 265 spm
Hammer length 490 mm
Max workpiece size ø450/□ 340
Hollow spindle ID ø295 mm

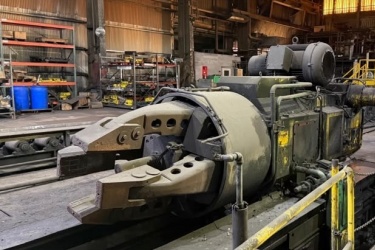

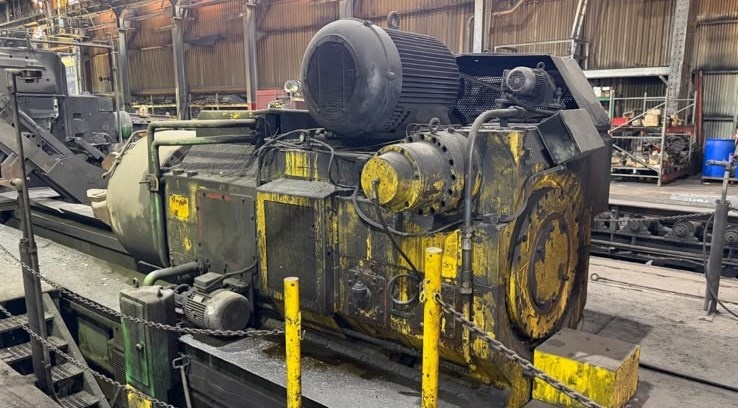

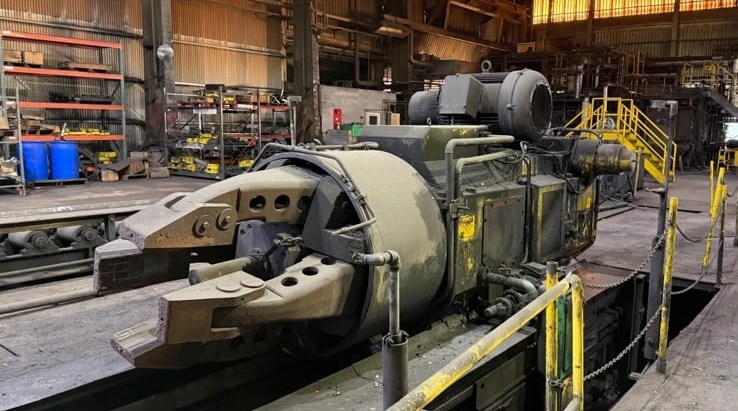

Chuck head max clamping 450 mm
Stroke of chuck head A 7500 mm
Stroke of chuck head B 8500 mm
Chuck head max feed speed 300 mm/sec
Adjustable chuck head feed speed 0-140 mm/sec
Adjustment of rams (on diameter) 200 mm
Cooling water inlet pressure 3-8 atm
Cooling water max inlet temperature 30°C
Circuit flow free
Cooling water flow 140.000 l/h
Compressed air pressure 6-8 atm
Compressed air connecting point ca. 2.5-3 m3/min
Connected power 400V (*), 650KW, 6000V, 500KW (*)
Total weight 530 t
