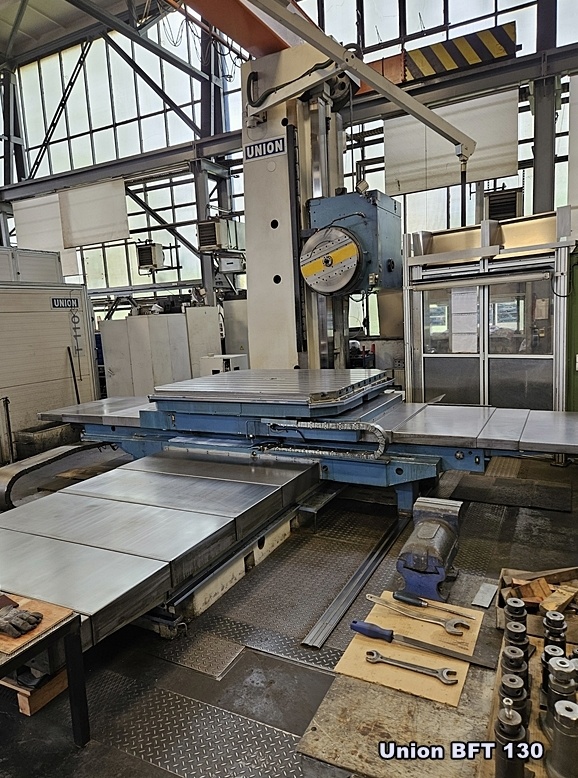

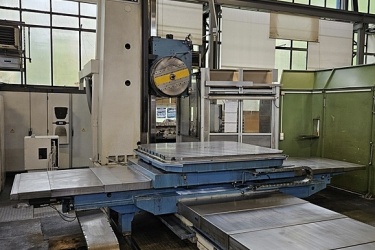

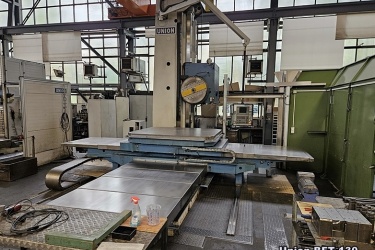

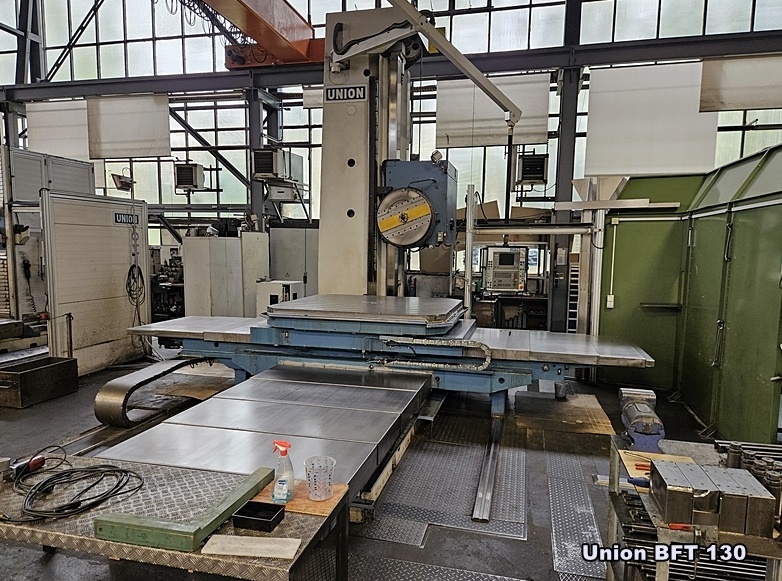

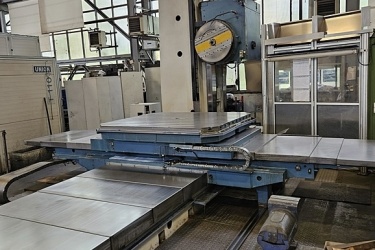

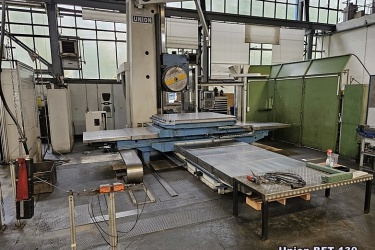

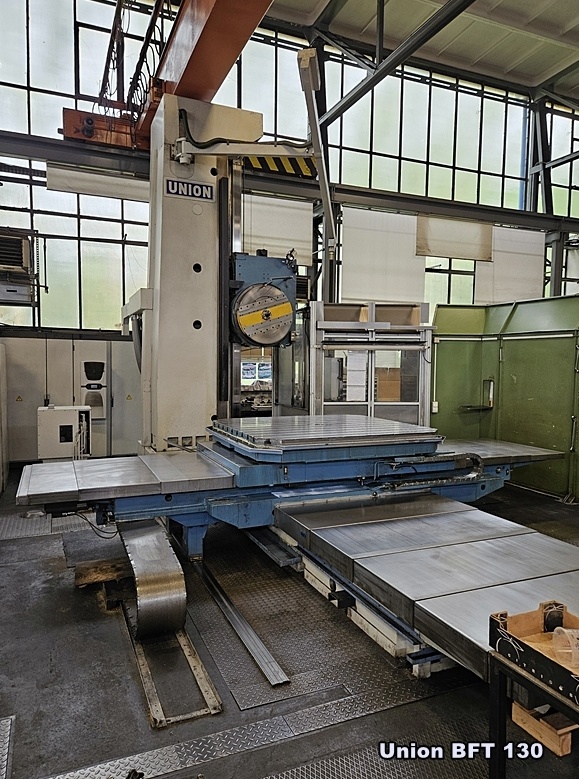

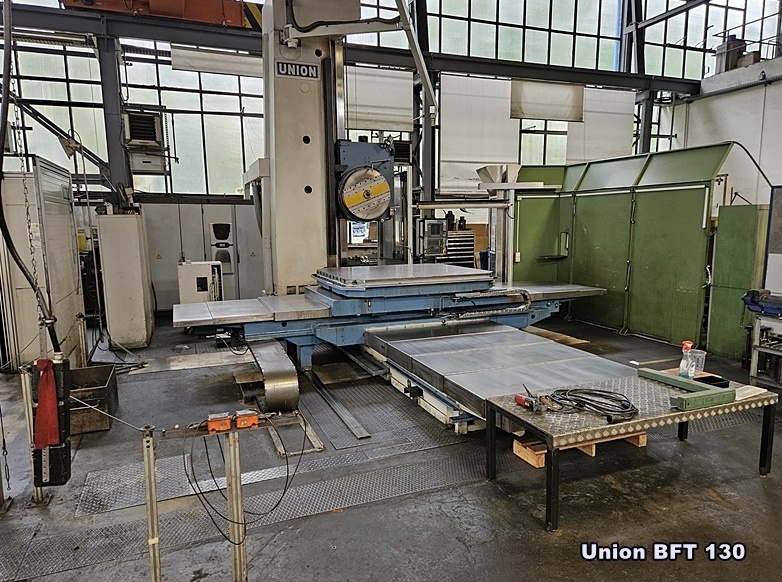

UNION CNC Horizontal Boring and Milling Machine (1998 / 2012-2024), top condition, POA - BEST OFFER GUARANTEED |
| BFT 130 NC, spindle ø130 mm / SK50, table 1800×2000 mm, XYZ 2785×2520×2320 mm, facing chuck, lots of tooling and attachments |
Spindle
Diameter ø130 mm
Taper SK50

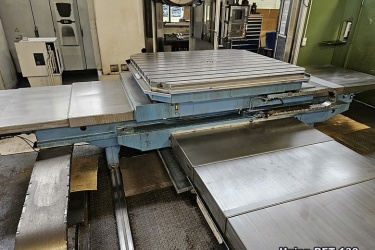

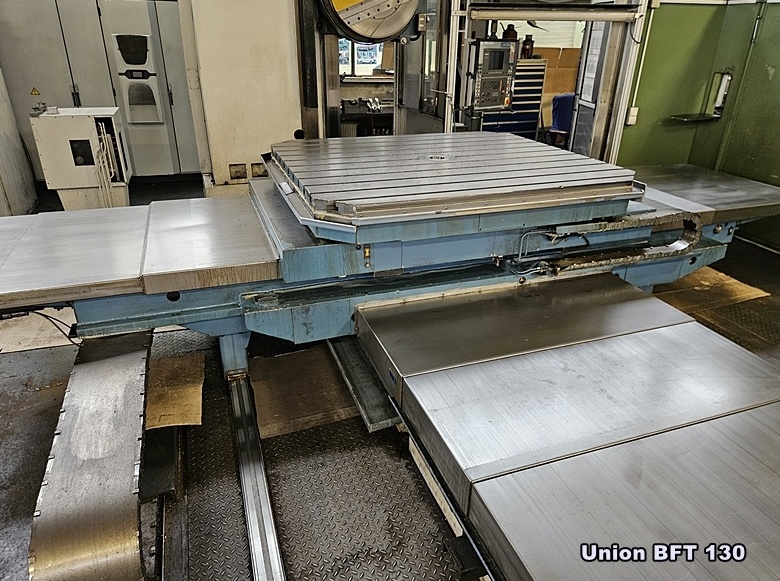

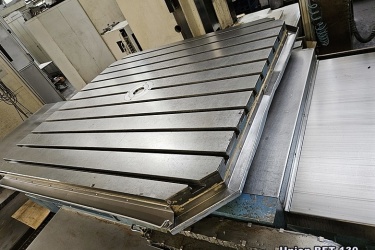

Table

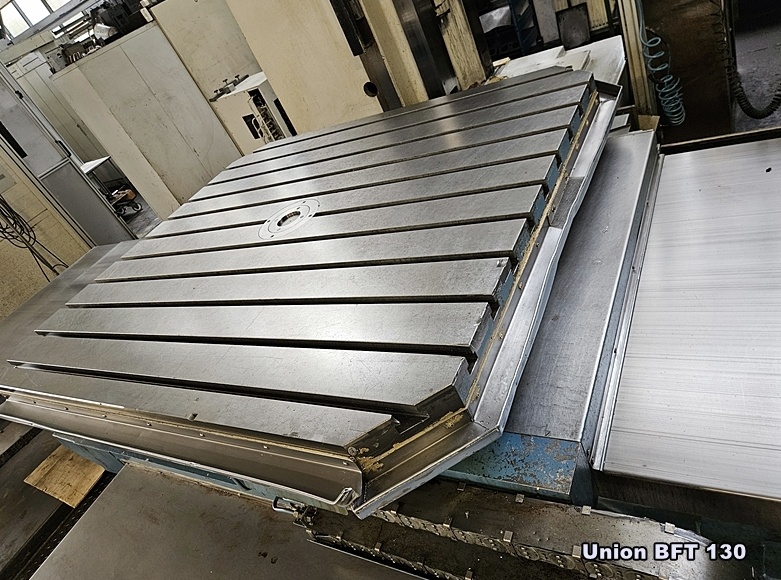

Clamping surface 1800×2000 mm
Travels
X-axis 2785 mm
Y-axis 2520 mm
Z-axis 2320 mm
Complete with:

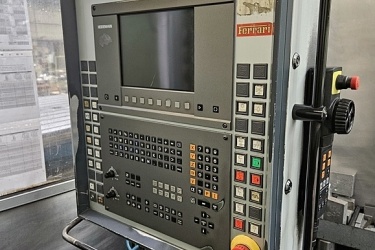

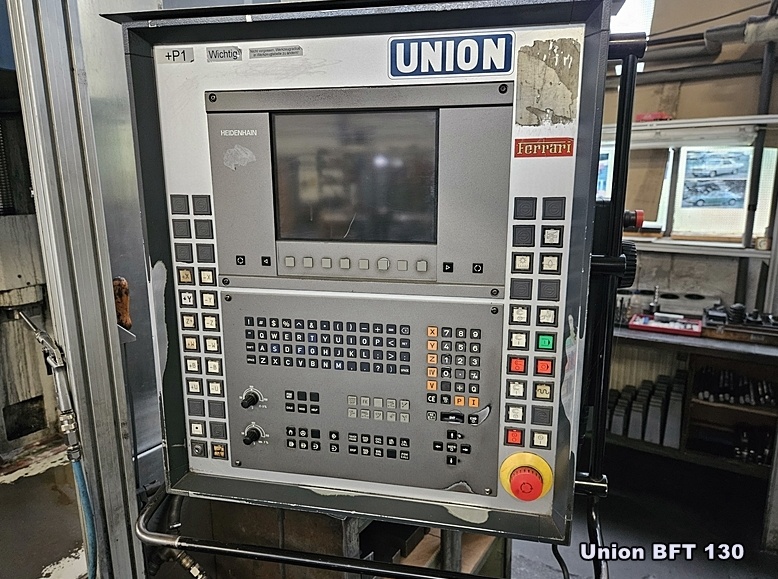

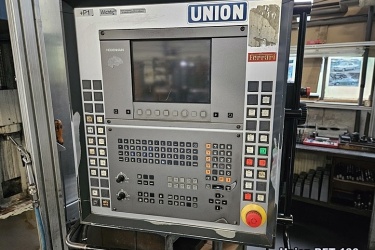

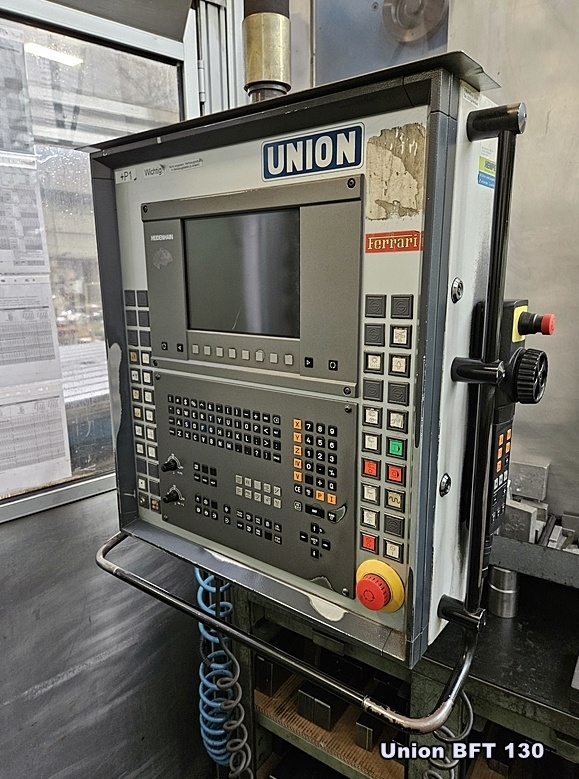

HEIDENHAIN TNC 426 control
1× angle plate (size 2500)

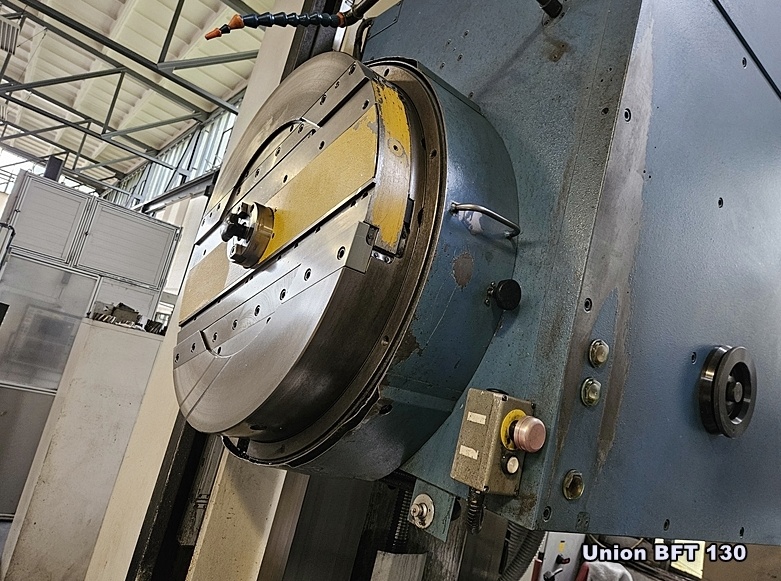

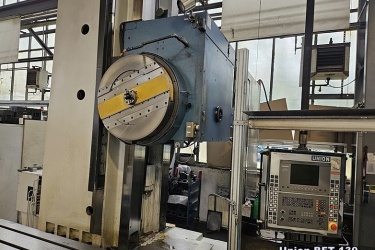

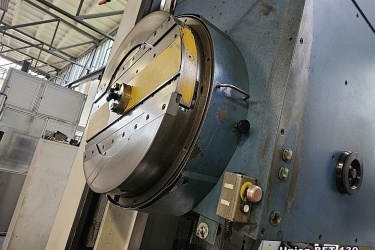

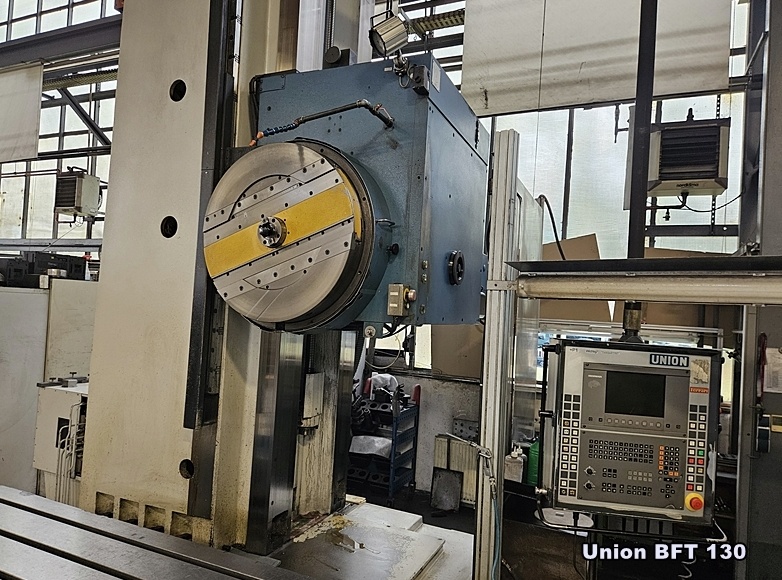

Facing chuck with universal turning toolholder (ISO 50)
Extensive accessories: tooling, clamping elements, tool cabinets

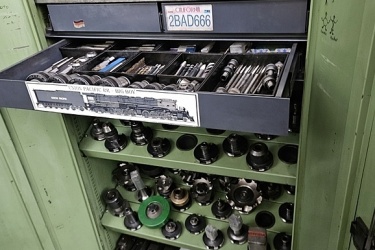

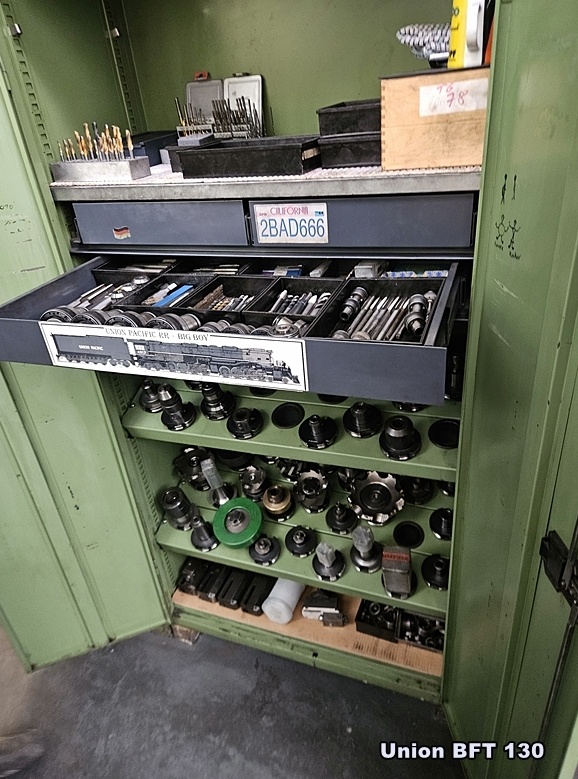

SK50 tool cabinet – fully stocked

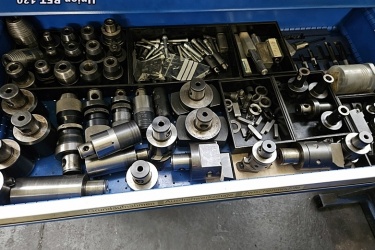

11-drawer tool cabinet – containing special precision tools
Extensive range of Wohlhaupter fine-turning tools and accessories

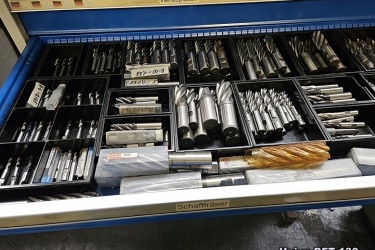

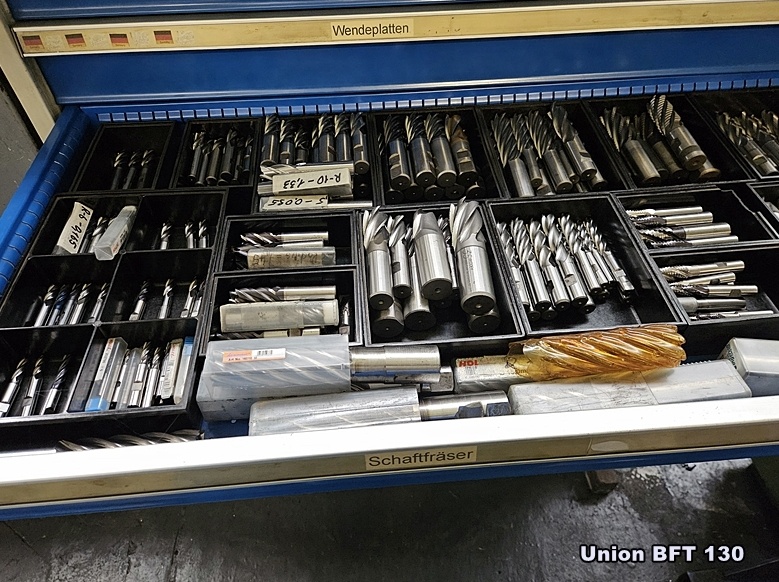

90° and 45° face milling cutters; end mills (various sizes)

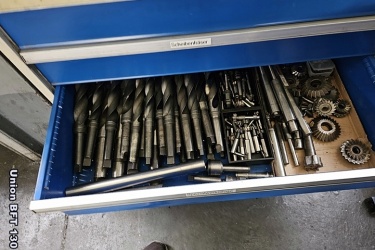

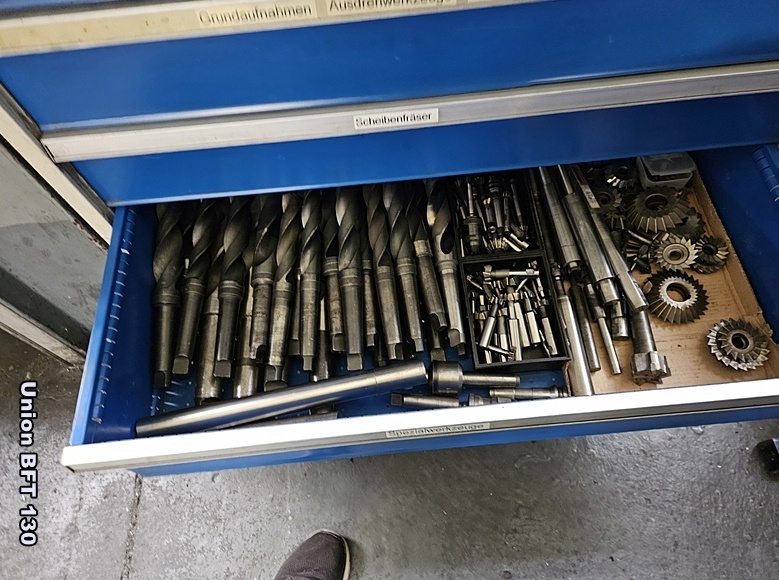

Disc milling cutters (various sizes)
Machine taps, indexable inserts – extensive inventory

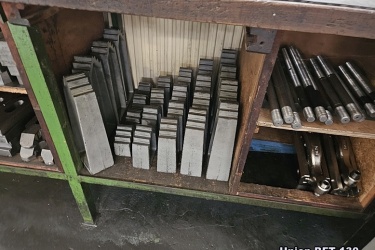

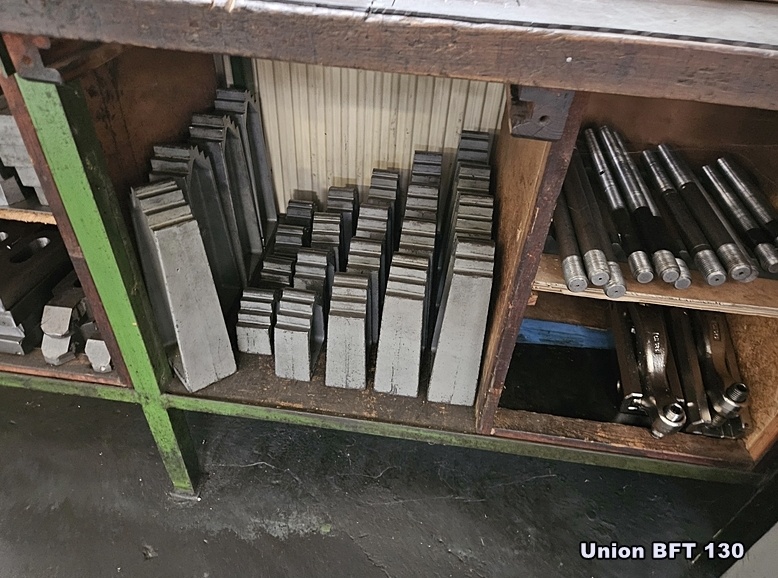

Lenzkes clamping tools – complete Multi-Quick clamping element set
Coolant system
General overhaul (2012):
- Grinding of X and Z guideways and application of new sliding liners on mating surfaces; refinishing of gibs, fitting strips, and cover strips, including hand-scraping
- Grinding of support rails and associated support rollers
- Hand-scraping of the B-axis slewing ring (table accuracy) involving both usable sliding surfaces of the rotary table axis; grinding of the table clamping surface
- Re-bearing of X, Z, and B-axis feed gearboxes
- Adjustment of B-axis feed gearbox; re-bearing of X/Z bearing blocks; overhaul of X, Z, and B-axis clamping elements (new seal kits, disc springs, and clamping linings)
- New clamping strip cover
- Disassembly, cleaning, inspection, and reassembly of X/Z measuring systems; inspection of ROD 780 measuring system (B-axis)
- New telescopic cover

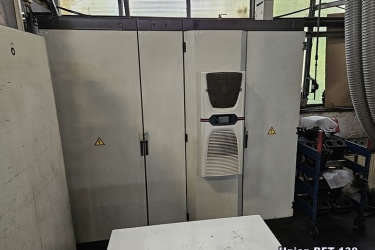

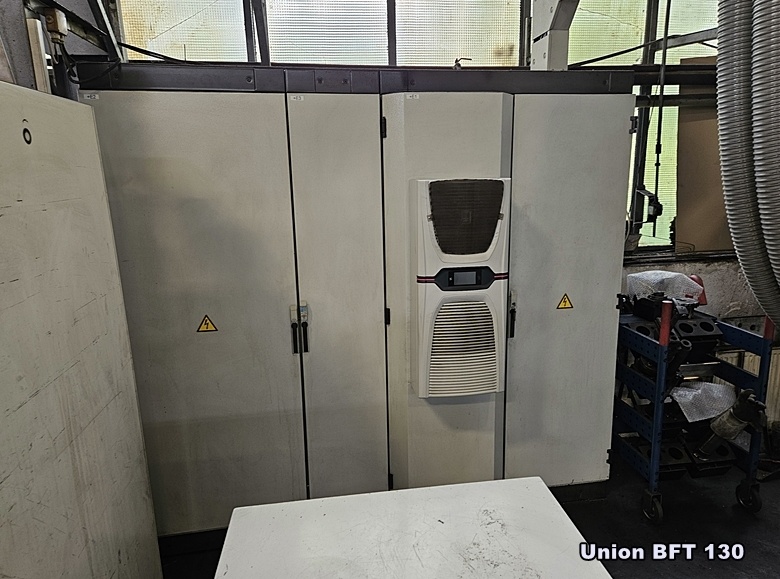

2018 RIHAL Blue e+ cooling unit – NEW
2019 New Z-axis feed gearbox In storage
2022 Siemens E/R module BSN1145-1BA01-ODAO – NEW
2023 Column deflection bearing and counterweight wire rope – NEW
2024 Siemens main spindle motor – overhauled with new parts (emb) |
| Control: CNC, HEIDENHAIN TNC 426 |
| Machine is in top condition. Manufactured 1998, generally overhauled 2012-2024. |
|
| Year: 1998 |
| Location : Europe |
| |
|
|
|
