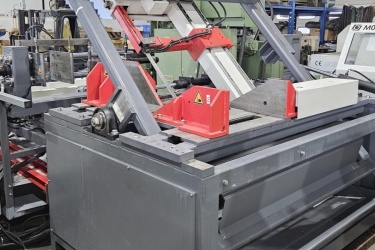

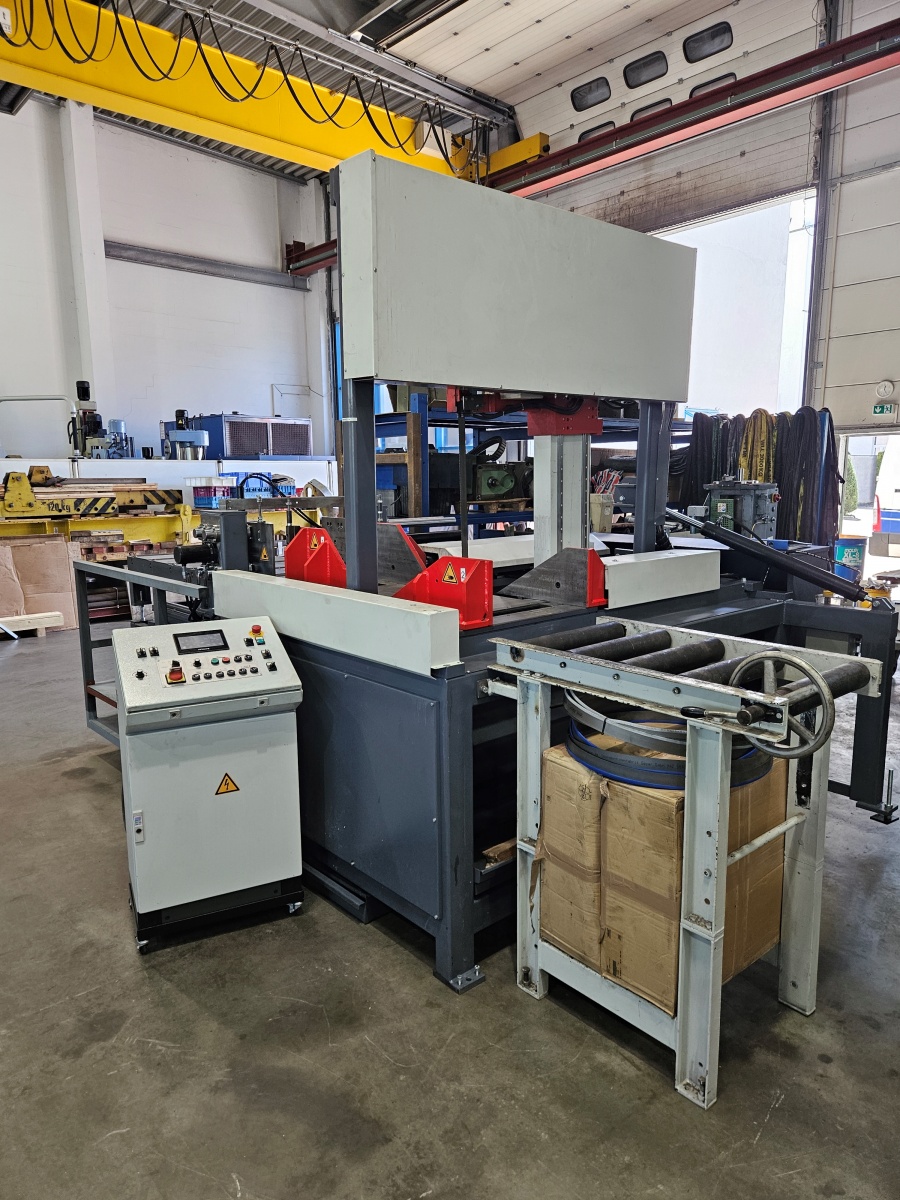

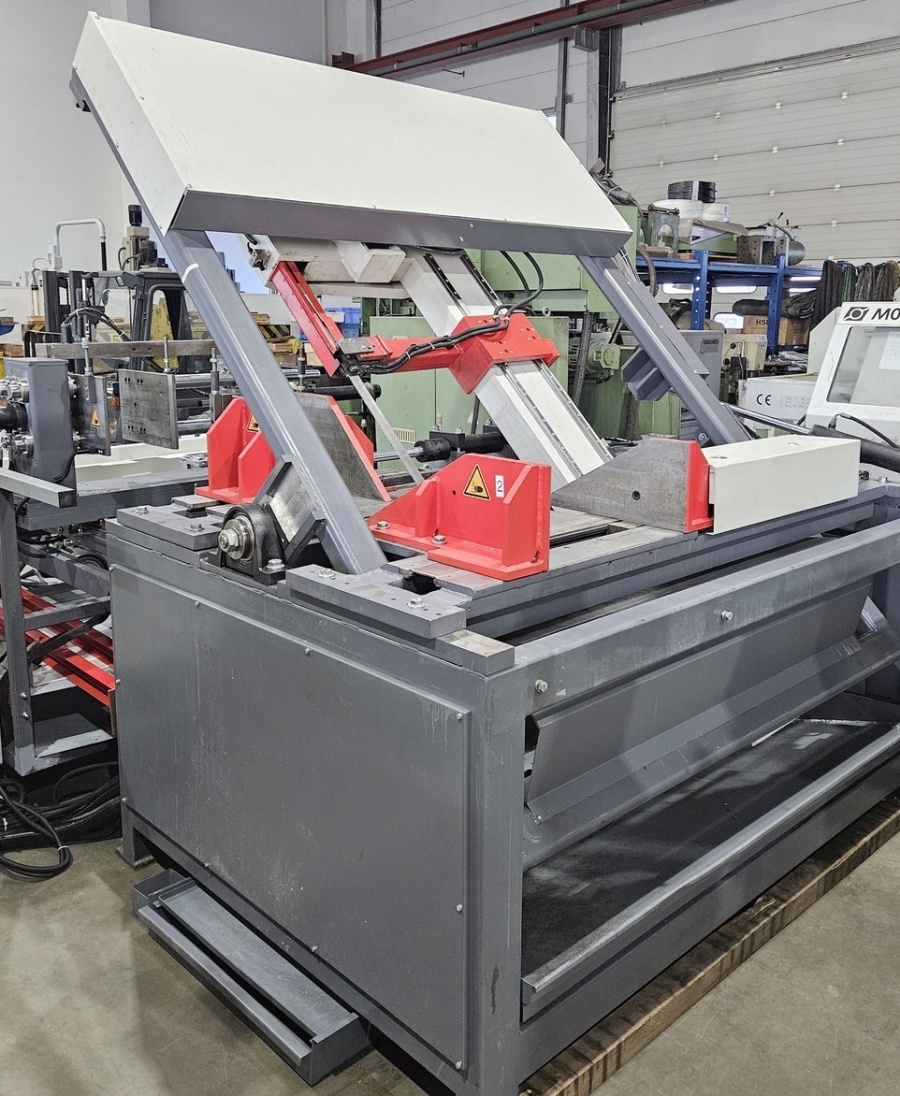

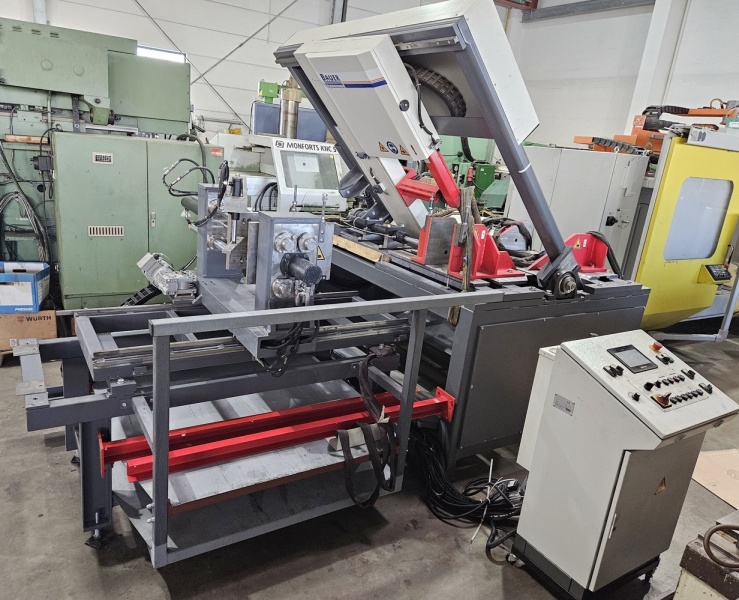

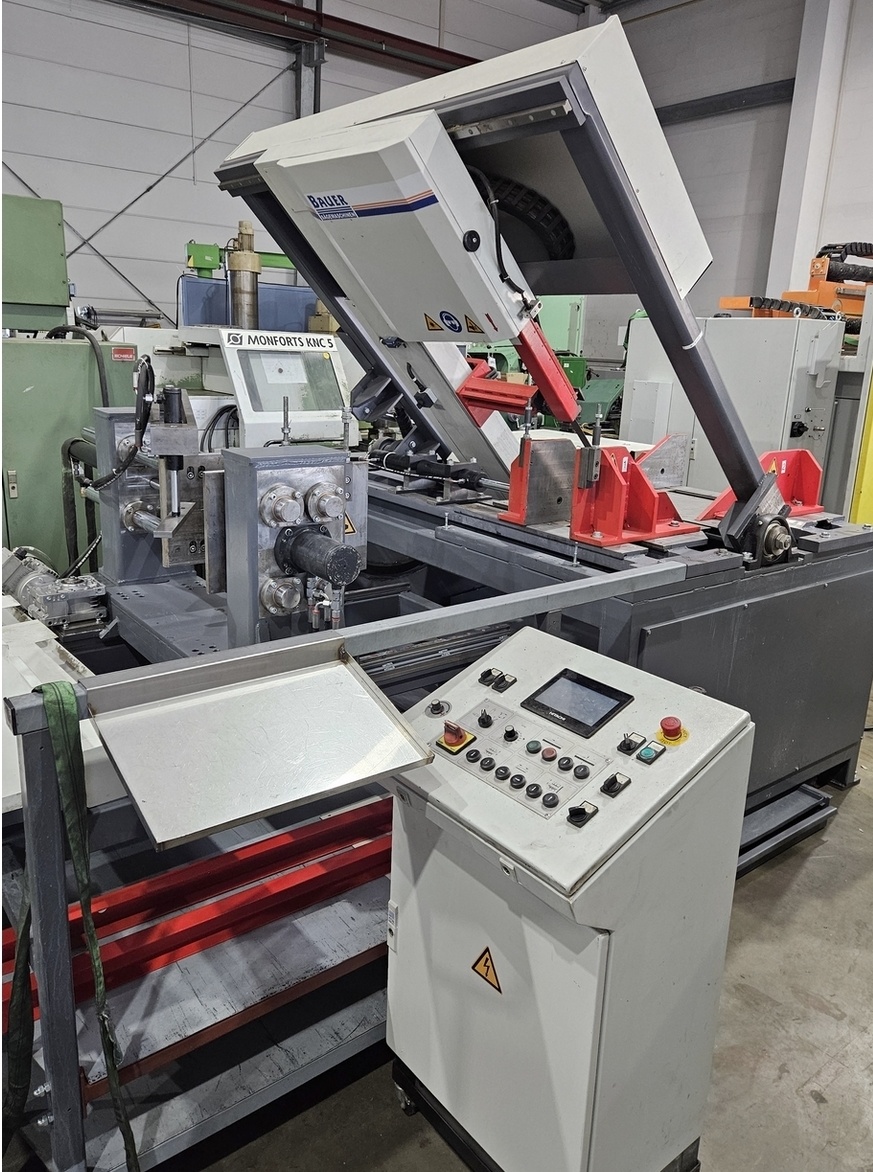

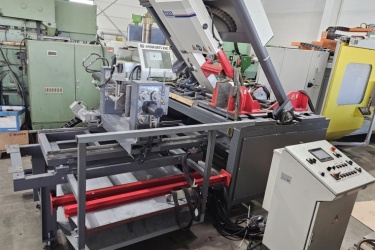

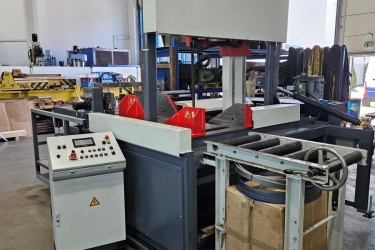

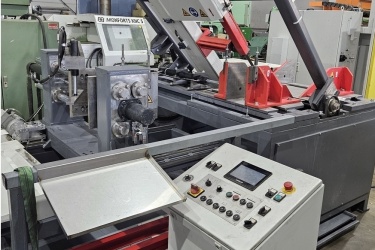

BAUER Automatic Mitre Band Saw (2018), excellent working condition, slightly used
VG 550, cutting capacity at 90° round / flat ø530 mm / 530×800 mm, cutting angles 45° / 60° / 90°
Cutting capacity
Round:
- at 90° ø530 mm
Flat:
- at 90° 530×800 mm
- at 45° 530×520 mm
- at 30° 530×320 mm
Cutting angle 45°–0°–60°
Saw motor 3.0 kW
Saw blade 5640×41×1.3 mm
Blade speed 20÷120 m/min, variable
Feed length 1500 mm
Working height 930 mm
Overall dimensions L×W×H 2500×4000×2500 mm (excluding roller conveyor)
Weight approx. 3300 kg
Standard equipment:
- 99 programs
- Machine stand with chip collection tray
- Hydraulic cutting pressure regulation
- Variable speed control
- Hydraulic guide arm adjustment
- Minimum quantity lubrication
- Automatic shut-off at end of cut and retraction behind movable jaw
- Synchronized chip brush
- Hydraulic miter adjustment
- Hydraulic vise clamping
- Hydraulic saw blade tensioning
- Operating manual
Control: PLC
Price should be understood ExWorks (INCOTERMS®) loaded.
